Silicone Overmolding for Consumer Products: Design and Manufacturing G

How to combine silicone with internal structures to create products that are soft, durable, functional, and commercially differentiated.

Introduction: When One Material Isn't Enough

Many consumer products need to do more than one thing. A baby toy should be soft enough to hold safely, but structured enough to bend and stay in place. A travel accessory should feel comfortable in the hand, but withstand repeated folding and packing. A kitchen tool should provide a secure grip, but resist heat and cleaning chemicals.

Silicone alone can provide softness and flexibility, but it may not provide the structural strength, controlled flexibility, or shape retention that some products require.

This is where silicone overmolding becomes a valuable manufacturing strategy.

Instead of manufacturing a silicone cover and attaching it to another component afterward, overmolding allows silicone to be molded directly around a substrate, insert, or structural component. The result can combine flexibility, grip, cushioning, protection, sealing, and visual appeal in a single finished part.

For consumer product brands, however, silicone overmolding is not simply a matter of "putting silicone around another material." The success of the product depends on substrate selection, bonding strategy, insert positioning, mold design, silicone flow, wall thickness, tolerances, curing conditions, and quality control.

This guide explains how silicone overmolding works, what designers should consider before tooling, and how the process can be applied to products such as baby toys, travel accessories, household products, and other consumer goods.

What Is Silicone Overmolding?

Silicone overmolding is a manufacturing process in which silicone—commonly liquid silicone rubber (LSR)—is molded over or around an existing substrate or insert.

The substrate can be a rigid plastic component, metal insert, wire, or another structural element. During molding, the silicone flows around the designated area and cures to form an integrated component.

In consumer products, the purpose is usually not simply to add another material. The silicone layer can provide functions that the substrate cannot provide by itself, such as a soft-touch feel, improved grip, cushioning, flexibility, water resistance, or protection from impact.

For example, a rigid plastic component may provide structural strength while a silicone outer layer provides comfort and a non-slip surface. Similarly, a metal or wire insert can provide internal flexibility or structural support while the silicone creates the finished user-facing surface.

Overmolding can therefore be understood as a form of functional integration: instead of designing multiple independent components and assembling them later, the product is designed around the interaction between the substrate and the silicone layer.

Industry design guidance from Protolabs emphasizes that successful overmolding depends on a combination of part design, material selection, mold design, and the bonding mechanism between materials.

Why Consumer Product Brands Use Silicone Overmolding

The biggest advantage of silicone overmolding is that it allows different materials to perform different jobs within the same product.

A rigid substrate may provide the required strength and dimensional stability, while silicone provides flexibility and a comfortable surface. This combination is particularly useful when a product needs to be both structurally reliable and pleasant to touch.

For consumer products, several benefits are especially important.

First, silicone can improve ergonomics. Handles, grips, buttons, toys, and travel accessories can be designed with a softer surface that is more comfortable to hold and manipulate.

Second, overmolding can improve product durability. Instead of relying on a separately assembled silicone sleeve or glued component, the molded silicone layer can become an integrated part of the product structure.

Third, silicone can provide protection. Depending on the product design, an overmolded layer can help protect an internal component from water, dust, impact, or repeated handling.

Finally, overmolding can create a stronger visual identity. Different colors, textures, shapes, and soft-touch surfaces can be incorporated into the product without adding as many secondary assembly operations.

Dow's LSR portfolio, for example, includes materials developed for intricate designs and overmolding, including grades for consumer, infant-care, water-contact, and food-contact applications.

This makes silicone overmolding particularly relevant to brands developing products where functionality and user experience need to be designed together.

Silicone Overmolding vs. Traditional Assembly

A conventional consumer product may require several independent components:

Substrate → silicone component → adhesive/mechanical assembly → inspection → final packaging

With overmolding, the manufacturing concept can become:

Substrate/insert → positioning → silicone molding → curing → inspection → finished component

The difference is more than a reduction in assembly steps.

When the silicone is molded directly around the insert, the interface between the materials becomes part of the product design. This can eliminate certain loose components and reduce opportunities for misalignment during secondary assembly.

However, overmolding is not automatically cheaper.

The tooling can be more complicated because the mold must locate and protect the insert while controlling silicone flow around it. If chemical adhesion is required, material compatibility and surface preparation also become important.

Protolabs notes that overmolding can carry higher initial tooling costs than simply molding and assembling separate components, while potentially recovering that investment through reduced secondary assembly and improved product durability.

For B2B buyers, the correct comparison is therefore not simply:

Overmolding cost vs. assembly cost

It should be:

Total manufacturing cost + assembly cost + quality risk + product performance + long-term scalability.

Two Common Approaches: Insert Molding and Two-Shot Overmolding

There are two major production approaches that brands may encounter when developing silicone overmolded products.

Insert Molding

With insert molding, a previously manufactured component is placed into the mold. Silicone is then injected around the designated portion of the insert.

This approach is particularly useful when the internal component already exists as a separate part.

For example, a metal wire, rigid plastic core, or other structural insert can be positioned inside a silicone mold before LSR is injected.

This approach can be attractive for consumer products because it allows the internal component and the silicone exterior to be optimized independently.

Two-Shot or Multi-Material Molding

In a two-shot process, the first material is molded first, followed by the second material in a subsequent molding operation, often using a specially designed mold system.

This can create a highly integrated multi-material component and can be attractive for higher-volume production.

The trade-off is tooling and equipment complexity. Two-shot molding generally requires more sophisticated tooling and process control, making it particularly suitable when production volume justifies the investment.

For a new consumer product, insert molding may therefore be a more practical route for certain product structures, while two-shot production can become more attractive as volumes and product complexity increase.

The Most Important Design Decision: What Is Inside the Silicone?

Before choosing silicone hardness or color, product designers should define the internal structure.

The insert is responsible for functions that the silicone cannot efficiently perform by itself.

Depending on the product, the insert could provide:

Structural support
Controlled flexibility
Shape retention
Connection points
Reinforcement
Weight distribution
Mechanical movement
Attachment to another component

This is particularly important for products that need to bend repeatedly.

Example: KEAN's Silicone Suction Toy

A useful example is KEAN's TOY30 Silicone Bath Toy Suction.

The product is designed as an eight-piece modular suction toy set. According to the product specification, one of the long rod modules contains an internal bendable wire core, allowing the component to bend and twist while maintaining its silicone exterior.

KEAN Silicone Bath Toy Suction – TOY30

This type of construction illustrates an important principle in silicone product development:

The silicone does not necessarily have to perform every structural function.

Instead, the internal core can provide the required mechanical behavior, while silicone provides the soft, flexible, child-friendly exterior.

For brands developing similar products, this approach opens up opportunities for flexible toys, sensory products, travel accessories, handles, grips, and other consumer products where internal structure and external feel need to work together.

Material Selection: Silicone and Substrate Must Be Designed Together

One of the most common mistakes in overmolding projects is selecting the silicone first and considering the substrate later.

The opposite approach is usually more effective.

The design team should first identify:

What is the substrate?

What temperature can it withstand?

Does it need chemical bonding or mechanical retention?

Will it deform during molding?

What loads will act on the interface?

What environment will the finished product experience?

LSR is heat-cured, so the substrate must be able to withstand the molding conditions or be otherwise compatible with the selected process. Dow, for example, offers low-temperature-curing LSR grades specifically intended for overmolding lower-melting-point plastics and thermally sensitive components.

This means that material compatibility should be evaluated before tooling—not after the first production trial.

For consumer products, common substrate categories can include selected thermoplastics, metal inserts, wire cores, and other engineered components. But compatibility is grade-specific rather than simply material-family-specific.

A statement such as "silicone bonds to plastic" is therefore too general for engineering decisions.

The actual question should be:

Does this specific silicone grade provide the required bond or mechanical retention with this specific substrate under the actual processing conditions?

Chemical Bonding vs. Mechanical Bonding

The interface between silicone and the insert is one of the most critical areas in the entire product.

There are two basic strategies.

Chemical Bonding

In chemical bonding, the silicone and substrate are selected or treated so that adhesion develops at their interface.

Depending on the material combination, this may involve a self-adhesive silicone grade, primer, or another surface-treatment process.

Dow, for example, offers self-adhesive LSR grades as well as products designed to improve LSR adhesion to substrates.

However, chemical adhesion should never be assumed simply because two materials appear to be compatible.

Testing is required.

Mechanical Interlocking

Mechanical bonding creates physical features that lock the silicone into the substrate.

These may include:

Holes
Grooves
Ribs
Undercuts
Openings
Channels
Anchoring structures

Protolabs specifically recommends incorporating mechanical bonding features when bonding is critical because mechanical retention can supplement or even replace chemical bonding in some designs.

For consumer products exposed to repeated bending, pulling, twisting, or impact, mechanical retention can be particularly valuable.

A strong design therefore does not rely on adhesive strength alone.

Design the Interface Before Designing the Exterior

The visible exterior of a consumer product is often the first thing designers focus on.

In overmolding, the interface deserves equal attention.

A well-designed interface should prevent the silicone from peeling, shifting, or separating from the substrate during normal use.

One important principle is to avoid creating exposed silicone edges where peeling can easily begin.

Another is to provide enough contact area or mechanical retention to transfer the expected loads.

For example, if a flexible silicone component is repeatedly bent around an internal wire, the transition between the reinforced and flexible sections needs to be carefully designed.

A sudden change in geometry can create a stress concentration.

A smoother transition can distribute the load more gradually.

This is why successful overmolding is fundamentally a design-for-manufacturing problem, rather than simply a molding problem.

Wall Thickness and Silicone Flow

Silicone thickness influences both manufacturing and product performance.

If the silicone layer is too thin, it may not provide the desired softness, cushioning, or durability.

If it is excessively thick, material consumption and cycle time can increase, while dimensional control can become more difficult.

Uniformity is also important.

Large variations in silicone thickness can affect filling, curing, shrinkage, flexibility, and appearance.

Protolabs' design guidance recommends maintaining uniform wall thickness and smooth transitions in overmolded components. It also notes that perceived flexibility depends not only on material hardness but also on the geometry and thickness of the overmold.

For consumer products, designers should therefore avoid treating silicone hardness as the only way to control softness.

A better approach is to optimize:

Silicone hardness + wall thickness + geometry + ribs + support structure

as one system.

Mold Design: Where Many Overmolding Problems Begin

A good CAD model does not automatically produce a good overmolded part.

The mold must simultaneously accomplish several jobs:

Position the insert accurately.
Prevent the insert from moving during injection.
Allow silicone to flow into the required areas.
Prevent unwanted flash.
Allow trapped air to escape.
Maintain the intended silicone thickness.
Allow the finished part to be removed without damage.

Insert positioning is especially important.

If a wire or rigid core shifts during molding, the silicone wall thickness can become uneven. The finished product may then feel different from one side to another, and dimensional consistency can become difficult to maintain.

The mold therefore needs reliable locating and retention features.

At the same time, the parting line and shut-off areas need to be carefully designed because silicone is capable of flowing into very small gaps.

Poor shut-off design can result in flash around the insert.

Venting and Air Traps

Air trapped between the substrate and silicone can cause incomplete filling, voids, cosmetic defects, or inconsistent bonding.

This becomes particularly important when silicone surrounds a complex insert.

The silicone needs a controlled flow path.

Designers should therefore consider:

Where does the silicone enter?

How does it flow around the insert?

Where does displaced air escape?

Where could the material front meet?

These questions should be answered during mold-flow and DFM evaluation rather than after tooling.

For complex consumer products, a supplier's engineering team should review the CAD model specifically for potential air traps, difficult filling areas, thin sections, and flash risks before mold fabrication.

Surface Texture, Grip and Consumer Experience

One of the strongest reasons to use silicone overmolding is the tactile experience.

A silicone exterior can transform a hard product into something softer, warmer, and easier to grip.

This is particularly relevant to consumer categories such as:

Texture can also become part of the product's functional design.

A smooth silicone surface may be easier to clean, while a textured surface may improve grip.

For children's products, however, texture and geometry should also be evaluated for cleaning, durability, and safety requirements appropriate to the intended market.

Overmolding therefore provides both an engineering opportunity and a branding opportunity: the material that users touch can become one of the most recognizable aspects of the product.

Color and Visual Differentiation

Silicone overmolding can also support stronger product differentiation.

Brands can use different silicone colors to create:

Brand-specific colorways
Two-tone products
Functional color coding
Premium editions
Seasonal collections
Retail-exclusive SKUs

For example, KEAN's TOY30 suction toy is offered in both softer macaron-style palettes and brighter color options, with custom Pantone matching available.

This demonstrates an important B2B advantage of silicone product development:

The same core manufacturing architecture can potentially support multiple market-facing SKUs.

Instead of developing an entirely new product for every colorway, brands can sometimes create multiple commercial versions from the same underlying structure and tooling strategy.

This can help reduce development duplication while giving buyers more SKU flexibility.

Designing for Baby and Children's Products

When silicone overmolding is used for baby or children's products, the engineering requirements become more demanding.

The product should not only look good and feel soft. The complete construction needs to be evaluated for foreseeable use and misuse.

The design team should consider:

Detachment of the insert
Separation between materials
Small-part generation
Pull and tensile forces
Repeated bending
Bite or chewing forces where applicable
Cleaning and moisture exposure
Colorant and material compliance
Applicable toy or children's-product requirements

For example, an internal wire or structural insert must remain securely encapsulated throughout the expected product life.

The relevant safety assessment should therefore focus on the finished product, rather than assuming that the silicone material alone determines product safety.

KEAN's TOY30 product page identifies EN71, ASTM F963 and GB6675 among the standards associated with the product, while also describing the internal bendable wire structure.

For a new custom product, however, the applicable testing program should always be determined according to the actual product category, age grading, materials, intended use, and destination market.

Common Silicone Overmolding Defects

Overmolding defects usually have an identifiable engineering cause.

Delamination

The silicone separates from the substrate.

Possible causes include poor material compatibility, inadequate surface preparation, insufficient bonding area, or excessive mechanical stress at the interface.

Flash

Excess silicone appears around the parting line or insert.

This may result from insufficient mold shut-off, excessive molding pressure, dimensional variation, or an insert that is not positioned correctly.

Short Shot

The silicone does not completely fill the intended cavity.

Possible causes include insufficient flow, an overly restrictive geometry, trapped air, or an unsuitable process setup.

Insert Movement

The internal component shifts during molding.

This can create uneven wall thickness and inconsistent product geometry.

Air Traps or Voids

Air becomes trapped around the insert and prevents complete filling.

This is often related to gate location, flow path, venting, or complex geometry.

Surface Defects

Marks, contamination, uneven texture, color variation, or mold-related defects can affect the cosmetic quality of the finished product.

These problems are why DFM review and prototype validation should happen before mass production.

Prototype Testing Before Mass Production

For B2B product development, the most expensive mistake is often not an expensive mold.

It is approving the wrong mold.

Before mass production, the overmolded structure should be tested for the actual functions that matter.

Depending on the product, validation may include:

Does the siliconBond strength testinge remain attached to the insert after repeated loading?

Flexing and fatigue testing

Can the product withstand repeated bending or twisting?

Pull testing

Can the internal component be pulled out under foreseeable loads?

Compression testing

Does the silicone recover its shape after repeated compression?

Environmental testing

Does the interface remain stable after exposure to heat, cold, water, cleaning, or other expected conditions?

Dimensional inspection

Is the silicone thickness and insert position consistent across production samples?

The exact test method should be selected according to the product's intended function and applicable standards.

From Prototype to Mass Production

A successful overmolding project should follow a staged development process.

Stage 1: Product Definition

Define the consumer use case, expected loads, appearance, flexibility, grip, durability, and target market.

Stage 2: Structural Design

Determine which functions belong to the silicone and which belong to the internal substrate or insert.

Stage 3: Material Evaluation

Select the silicone grade, hardness, color system, substrate, and bonding strategy.

Stage 4: Prototype

Produce initial samples to evaluate fit, feel, flexibility, bonding, and overall appearance.

Stage 5: DFM Review

Analyze mold parting lines, insert positioning, silicone flow, wall thickness, venting, shut-offs, and demolding.

Stage 6: Tooling

Build production tooling after the structural design has been validated.

Stage 7: Trial Production

Run molding trials and inspect first-off samples.

Stage 8: Validation

Test mechanical performance, appearance, dimensional consistency, and relevant regulatory requirements.

Stage 9: Mass Production

Once the product passes approval, establish production parameters and inspection standards for consistent manufacturing.

This workflow is especially important for custom consumer products because tooling decisions can lock in design limitations for thousands or millions of units.

How B2B Buyers Should Evaluate a Silicone Overmolding Supplier

For a brand owner or sourcing manager, the supplier's ability to mold silicone is only the beginning.

A capable supplier should be able to discuss the complete interface between the silicone and the insert.

During supplier evaluation, ask:

Can you review our CAD model before tooling?

A professional supplier should be able to identify potential filling, venting, wall-thickness, insert-positioning, and demolding issues.

Which silicone grade would you recommend and why?

The answer should be based on hardness, curing conditions, application environment, bonding requirements, and regulatory requirements—not simply price.

How will the insert be positioned during molding?

This is particularly important for products containing wires, metal cores, or small structural components.

Is the design relying on chemical adhesion, mechanical retention, or both?

The bonding strategy should be clear before tooling.

How will you test the finished interface?

A good production plan should include inspection and validation of the finished product, not just incoming silicone material.

Can you support color and packaging customization?

For consumer brands, manufacturing capability should connect to the commercial requirements of the final SKU.

Silicone Overmolding as a Product Development Strategy

The real value of silicone overmolding is not simply that it produces a soft surface.

Its greater value is that it allows product designers to combine different engineering functions within one consumer product.

A rigid core can provide structure.

A wire can provide controlled flexibility.

Silicone can provide softness and grip.

A textured surface can improve handling.

Different colors can support brand differentiation.

Mechanical interlocks can improve structural retention.

And an integrated molding process can reduce the need for separate assembly.

This is why overmolding should be considered during product architecture—not added as an afterthought.

For brands developing baby toys, feeding accessories, travel products, kitchen tools, household goods, or pet products, this approach can create products that are simultaneously more functional, more distinctive, and easier to manufacture at scale.

Conclusion: Design the Interface, Not Just the Product

Successful silicone overmolding begins long before the silicone enters the mold.

The most important decisions are made during product architecture and engineering:

What should the internal structure do?

What should the silicone do?

How will the two materials stay together?

How will the insert be positioned?

How will silicone flow around it?

How will the product be tested after molding?

For consumer products, these decisions directly influence durability, tactile experience, appearance, safety, manufacturing cost, and scalability.

KEAN's silicone suction toy provides a practical example of this product-development philosophy. The TOY30 design combines a silicone exterior with an internal bendable wire core in its long rod module, while the broader product architecture uses modular silicone components, suction functionality, multiple play modes, color options, and OEM/ODM customization.

The lesson for B2B product developers is straightforward:

Do not treat silicone overmolding as simply a manufacturing process. Treat it as a product-design strategy.

When material selection, interface design, mold engineering, and production planning are developed together, silicone overmolding can turn a conventional multi-component concept into a more integrated and commercially differentiated consumer product.

Technical References and Further Reading

Dow — Liquid Silicone Rubber (LSR) Technology — LSR material options, self-adhesive grades, and low-temperature curing technologies.
Dow — Liquid Silicone Rubber (LSR)
Dow — Liquid Silicone Rubber Consumer Solutions Guide — LSR processing, consumer applications, overmolding, and infant-care/food-contact material options.
Dow — Liquid Silicone Rubber Consumer Solutions Guide
Protolabs — Overmolding and Insert Molding Design Guide — Bonding, material compatibility, mechanical interlocking, and overmolding design considerations.
Protolabs — Overmolding and Insert Molding Design Guide
Protolabs — Overmolding Design Guidelines — Design considerations for materials, bonding, surface finish, draft, and insert molding.
Protolabs — Overmolding Design Guidelines
KEAN Silicone — Silicone Bath Toy Suction / TOY30 — Product example illustrating a silicone consumer product incorporating an internal bendable wire core and OEM/ODM customization.
KEAN Silicone — Silicone Bath Toy Suction / TOY30

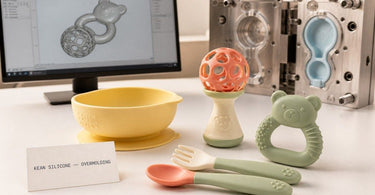

Silicone Overmolding for Consumer Products: Design and Manufacturing Guide
